Internet of Things (IoT)

The Internet of Things requires the development of increasingly complex distributed systems. We have shown that using methods from generative software engineering and Domain Specific Languages (DSLs) allow us to handle this complexity in a better way.

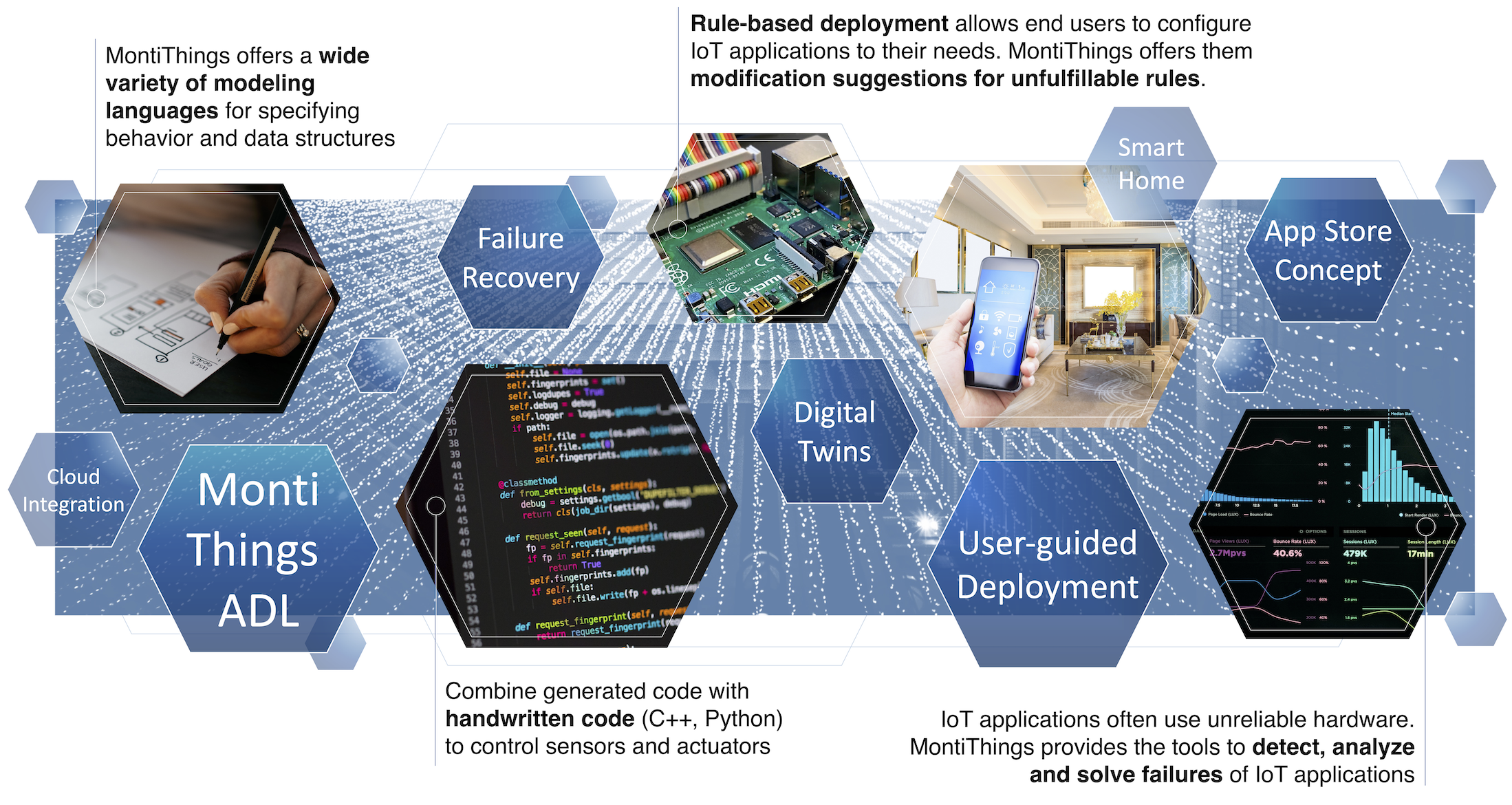

The MontiThings ecosystem [KRS+22] [KKR+22] provides an end-to-end solution to modeling, deploying, and analyzing Internet of Things systems. Since IoT systems are often based on unreliable hardware, MontiThings especially focusses on failure-detection and analysis. Using its component-and-connector architecture description language, many failure detection and resolving mechanisms can be automatically added to the generated code [KKR+22]. For errors not being detected at design time, MontiThings offers analysis tools that can be automatically integrated into the generated code [KMR21]. By using a model-driven approach, MontiThings can also synthesize the integration with digital twins [KMR+20].

We have investigated how model-driven methods can support the development of privacy-aware [ELR+17] [HHK+14] cloud systems [PR13]. Especially, we presented an approach for assuring the privacy of user data even if it is processed in a cloud and, thus, not under the user’s control [HHK+14]. Furthermore, we investigated distributed systems security [HHR+15], privacy-aware process mining [MKM+19], and distributed robotics applications [RRRW15b].

IoT Application Domains

IoT systems are relevant in a varity of application domains, e.g., smart energy management, smart homes, production, civil structures, logistics, automotive, or smart health systems.

Smart Energy Management

Smart energy systems rely on sensory information within buildings and their infrastructure such as cooling or heating systems. Within the Energy Navigator tool [FPPR12], we can model the structure and behavior of a building and its facilities, measure operational data from sensors, and match model and operational data [KLPR12] during analysis and reporting of the results.

Industry 4.0

IoT plays an important role for Industry 4.0, as sensors can produce too large amounts of data and industry is facing an immense heterogeneity regarding sensors and machinery [BDJ+22]. To tackle large data amounts, we have investigated the concept of digital shadows [BBD+21b] within the Cluster of Excellence Internet of Production (IoP), allowing us to aggregate and abstract relevant data for specific purposes. We identified the digital representation, integration, and (re-)configuration of automation systems as primary Industry 4.0 concerns [WCB17]. Thus, we have investigated the creation of self-adaptive digital twins [BBD+21a], the generation of low-code platforms for digital twins [DHM+22], or process-aware digital twin cockpit generation from sensor data in event logs [BMR+22]. Moreover, we have investigated how to include privacy considerations within the system architecture and model-driven engineering approaches for IoT systems [MNRV19].

We identified software engineering challenges for Cyber-Physical Production Systems (CPPSs) together with several industry partners [FMR+22], e.g., the complexity of systems, variability management, real-time requirements, knowledge management, multidiscipliarity of teams, agility vs. regulations, the missing software engineering education of CPPSs experts, and data analytics capabilities in CPPSs.

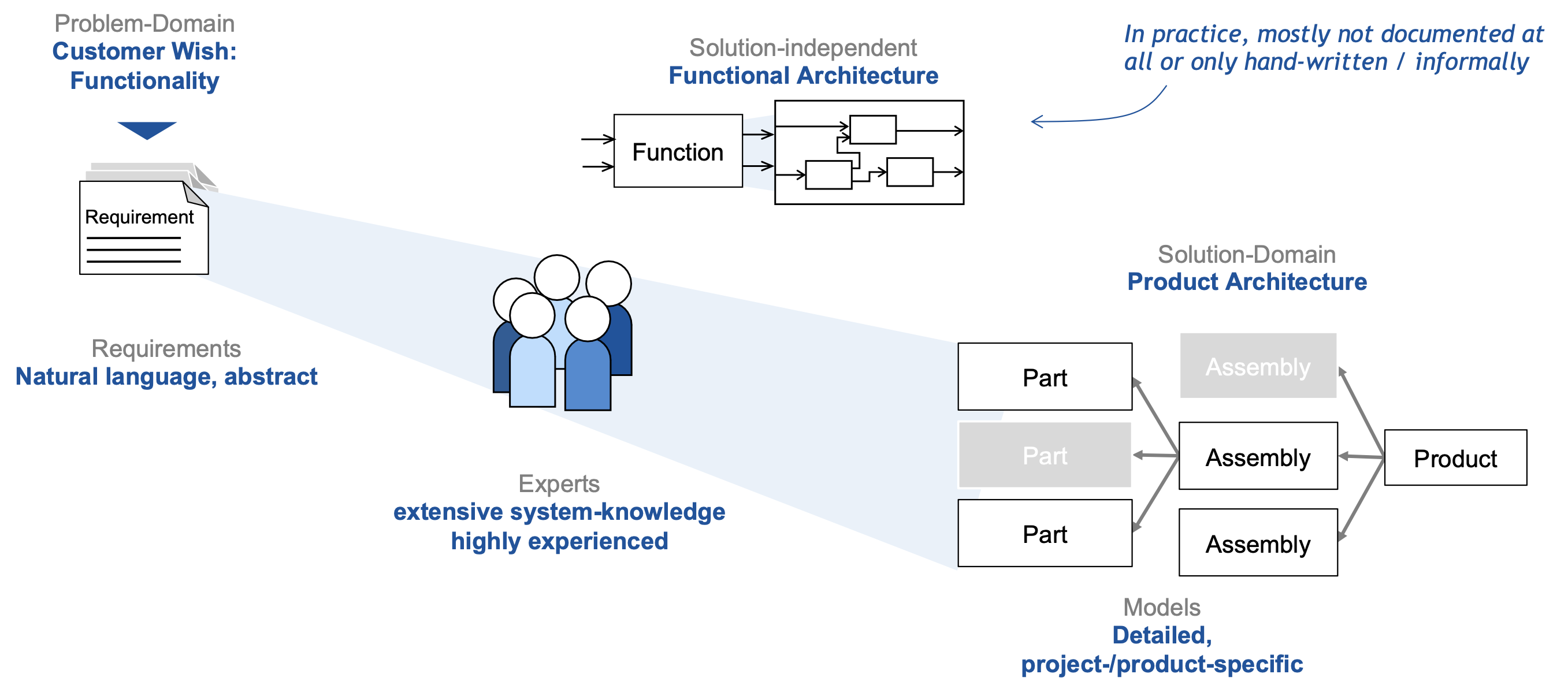

Another aspect where we have turned our attention to are mechanical and electrical applications and model-driven systems engineering. Using a SysML profile, we enabled mechanical engineers to model systems like an automotive cooling pump in a reusable way [DRW+20]. Extracting the data structure of these functional models allows us to generate digital twin cockpits covering relevant parameters in the engineering process of mechanical systems [MNN+22]. Using a multi-level modeling framework, we support machine-as-a- service approaches [BKL+18].

Key Statements

  1. The structure of component-and-connector architectures enables code generators to automatically enhance the generated software with mechanisms for failure detection, analysis, and recovery. Thus, it can increase the realiability IoT applications.
  2. Component-and-connector architectures support modeling a wide variety of concerns of IoT applications, including data privacy, mechanical, and electrical aspects.
  3. Model-driven software engineering supports the use of heterogeneous IoT systems in the production domain and eases the creation of digital twins representing sensory information.
